Slim Plastic Type cabinet Fan

Cabinet Fan

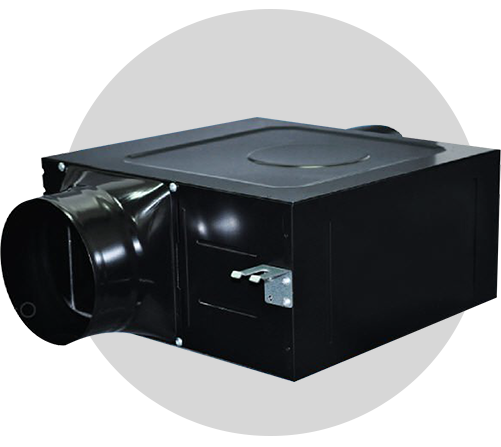

Slim Plastic Type Cabinet Fan

Panasonic new slim plastic type cabinet fan can be perfectly integrated in the duct woks. This fan can be used as single port or multi port to exhaust air from several areas with only one unit and your choice for ideal ventilating system in providing excellent indoor Air Quality (IAQ)

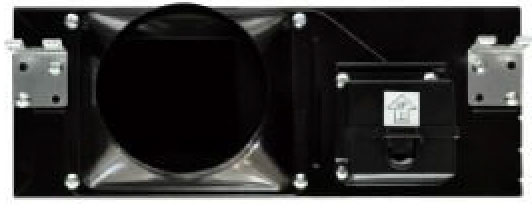

Compact Size

  • slim and compact design allow easy installation at narrow ceiling space
  • compared with existing models, new plastic slim type reduces size of height in 33%

Two speed selection

  • Hight and low notch can be chosen to enhance the scope of application and increase the flexibility of ventilation system planning

High static pressure

  • Special design blade and airflow allows achieving high static pressure in slim and compact casing

High air volume, low noise level

  • Newly design airflow in slim casing not only provide high air volume but also keep in low operating noise level

Easy installation

  • u-grooved mounting brackets prevents the loosen of mounting bolts. It reinforces the installation safety
  • attached round-shape adaptor can be removed to facilitate your square-shape duct work installation

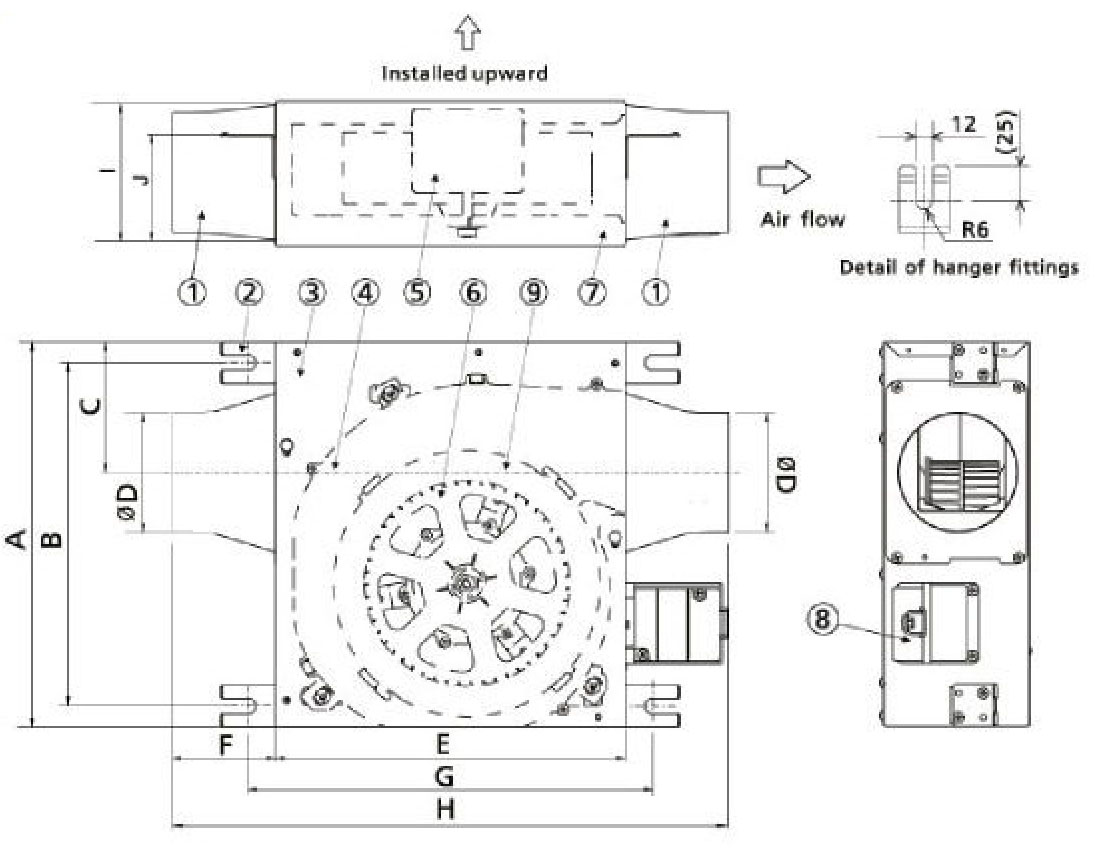

Parts Name And Dimensions

Remark: the views are 3rd angle.
No Part name Q'ty No Part name Q'ty
1 adapter 2 6 Blade 1
2 Hanger fitting 4 7 Fan casing 1
3 Inspection panel 1 8 Wiring box cover 1
4 Casing assy 1 9 Orifice 1
5 Motor 1
Model A B C D E F G H I J Connecter Duct Dimension
FV-02NU1H 315 281 107 98 285 85 330 455 120 92 Φ 100
FV-04NU1H 315 281 118 148 285 100 330 485 170 107 Φ 150
FV-05NU1H 362 327 119 148 338 100 383 538 170 107 Φ 150
FV-07NU1H 362 327 119 148 338 100 383 538 170 107 Φ 150

Air Volume

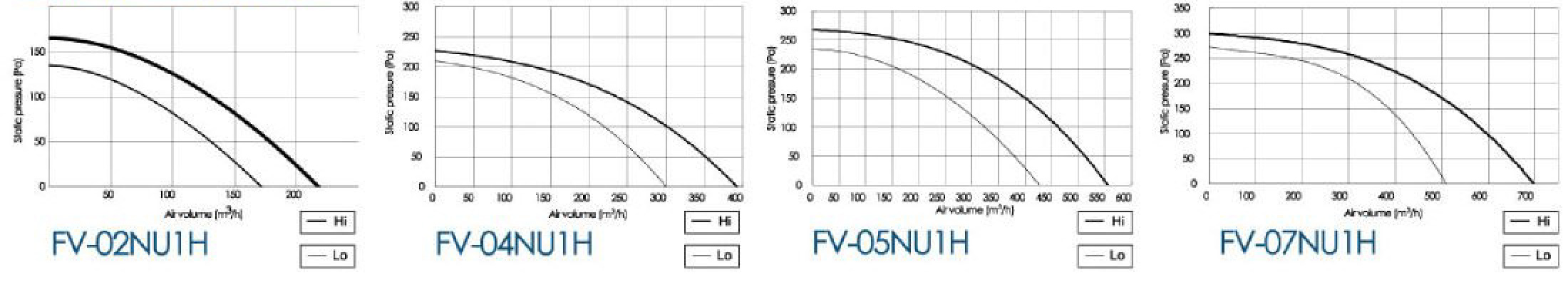

Static Pressure Curve

Specification

Model No Air Volume
(CMH)
Noice
(db)
Power(W) Dimension
(mm)
Duct
Diametor(mm)
Net
Weight(Kg)
0 Pa 100 Pa 150 Pa 200 Pa 0 Pa 0 Pa H L W
FV-02NU1H 218 130 24 27 120 285 315 Φ 100 3.8
FV-04NU1H 392 300 31 62 170 285 315 Φ 150 4.4
FV-05NU1H 554 400 34 83 170 388 362 Φ 150 6.4
FV-07NU1H 694 450 37 118 170 388 362 Φ 150 8.5

Wiring Diagram

High Notch
Low Notch
